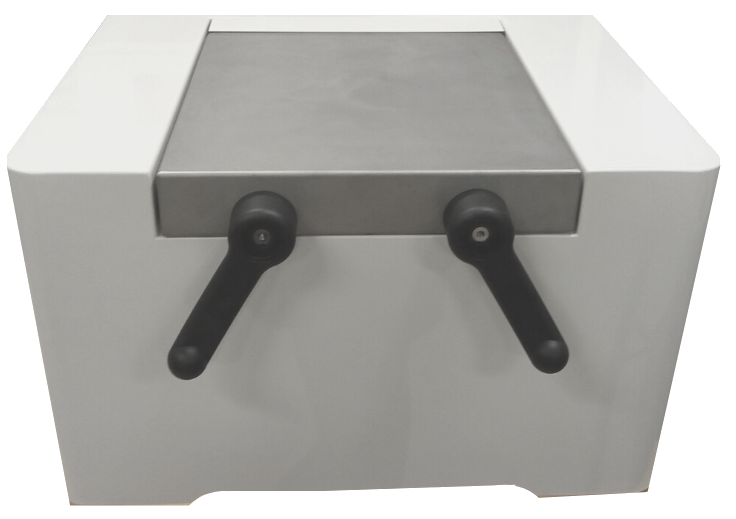

BeaQuant-s

The BeaQuant-S is a dedicated real-time autoradiography system for small samples (standard or non standard microscope slides) compatible with any type of radioisotope.

Whether you are working in biology, geology or geochemistry, the BeaQuant-S will be able to detect, image and quantify any kind of radioisotope (beta and/or alpha emitter) no matter their level of radioactivity.

Like its big brother, our top-end model BeaQuant, our new device is based on the same detection technology, and has an unsurpassed sensitivity and resolution.

  1. 100% digital acquisition in real-time
  2. Highest resolution and best sensitivity on the market
  3. Quantitative images analyzed with the dedicated Beamage software
  4. Shortest acquisition time (compared to other instruments available on the market)
  5. Intuitive and user friendly
Presentation of a Real-time alpha autoradiography on Uraninite rock. Particularly used on geoscience field and mining field
Presentation of a Real-time alpha autoradiography on Uraninite rock. Particularly used on geoscience field and mining field
Presentation of a Real-time alpha autoradiography on Uraninite rock. Particularly used on geoscience field and mining field
Presentation of a mouse shinbone real-time alpha autoradiography labelled with Ra223 Xofigo.

Characteristics

Technology

Gaseous detector with direct readout

Performance

  • Spatial resolution: 20 µm

  • Linearity over 5 orders of magnitude

  • Efficiency: 95%

Markers

All radioisotopes

Field of view

  • Field of view of 12 cm x 8 cm

  • 4 standard 75×25 microscope slides
  • 2 standard 75×50 microscope slides

Software

  • Beavacq
  • Beamage

Dimensions

60x45x45 cm for benchtop module

60x60x45 cm for supply module

Weight

50 kg for benchtop module

85 kg for supply module
