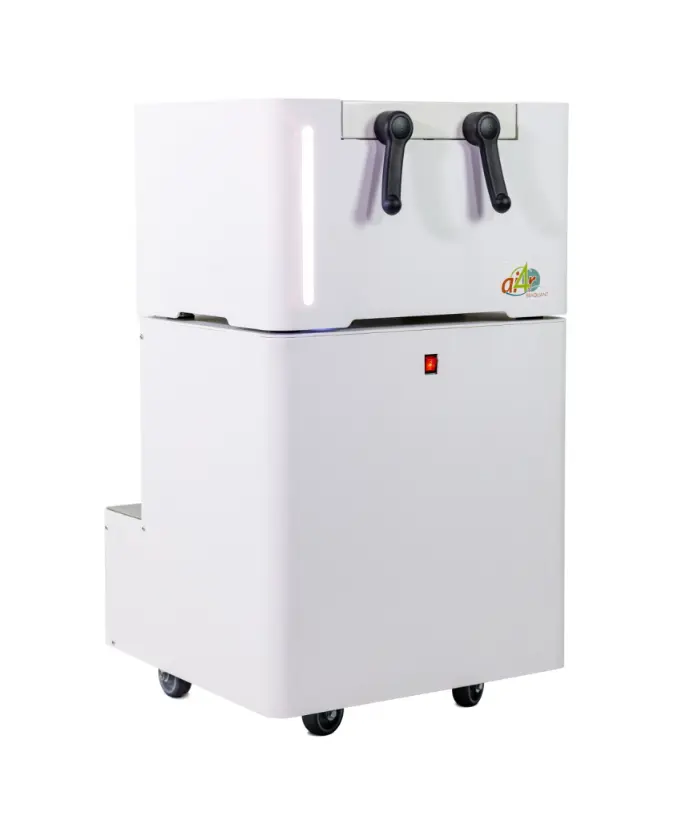

BeaQuant-S

The BeaQuant-S is a dedicated real-time autoradiography system for small samples (standard or non standard microscope slides) compatible with any type of radioisotope.

Whether you are working in biology, geology or geochemistry, the BeaQuant-S will be able to detect, image and quantify any kind of radioisotope (beta and/or alpha emitter) no matter their level of radioactivity.

Like its big brother, our top-end model BeaQuant, our new device is based on the same detection technology, and has an unsurpassed sensitivity and resolution.

  1. 100% digital acquisition in real-time
  2. Highest resolution and best sensitivity on the market
  3. Quantitative images analyzed with the dedicated Beamage software
  4. Shortest acquisition time (compared to other instruments available on the market)
  5. Intuitive and user friendly

100%
Digital
20-50µm
Resolution
5
Orders of magnitudes
12x8 cm²
Up to 4 microscope slides

Characteristics

Technology

Direct gaseous counter

Performance

  • Spatial: Alpha 20 µm – Beta 20 µm – High energy beta or beta plus 50 µm
  • Linearity over 5 orders of magnitude
  • Sensitivity: 0.0005 cpm/ mm2

Markers

All radioisotopes

Isotope separation

Low/High energy, Short/Long Half-lives

Field of view

  • 12 x 8 cm2
  • 4 standard microscope slides (75 x 25 mm²)
  • 2 standard microscope slides (75x50 mm²)

Software

  • Beavacq
  • Beamage

Safety

Shielded detector using inert gases (Ne and CO2)

Dimensions

65 x 45 x 37 cm (top module)

60 x 60 x 70 cm (supply module)

Weight

90 kg
