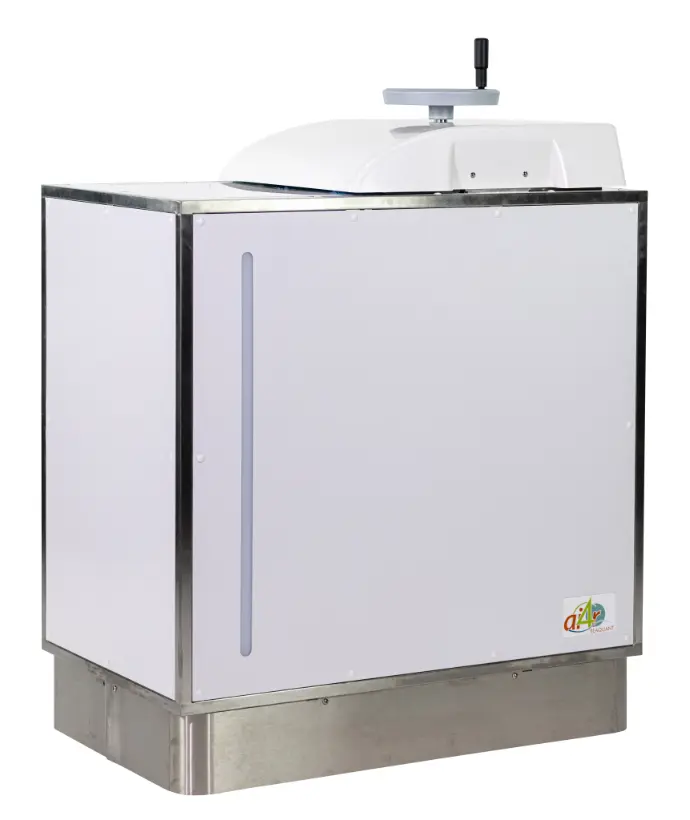

BeaQuant - The next generation for digital autoradiography

Ai4r has devised and designed a new generation of gas detectors for real-time autoradiography in the field of ex-vivo or in-vitro preclinical research, ex vivo preclinical imaging in nuclear medicine.

Our innovative technology combines speed, precision and sensitivity to locate the radioactivity of all alpha, beta minus and beta plus emitters in a wide field of view and in a shorter exposure time.

The BeaQuant is the first autoradiograph to be simultaneously a beta particles imager and an alpha imager.

100%
Digital
20-50µm
Resolution
5
Orders of magnitudes
20x20cm²
Up to 18 microscope slides

Characteristics

Technology

Direct gaseous counter

Performance

  • Spatial: Alpha 10 µm – Beta 20 µm – High energy beta or beta plus 50 µm
  • Linearity over 5 orders of magnitude
  • Sensitivity: 0.0005 cpm/ mm2

Markers

All radioisotopes

Isotope separation

Low/High energy, Short/Long Half-lives

Field of view

  • 23 x 23 cm2
  • 18 standard microscope slides (75 x 25 mm²)
  • 8 standard microscope slides (75x50 mm²)
  • 16 standard petrographic slide (45x30 mm²)
  • Other format available on request

Software

  • Beavacq
  • Beamage

Safety

Shielded detector using inert gases (Ne and CO2)

Dimensions

85 x 55 x 120 cm

Weight

240 kg
